The panel is the front line of your home's air filter setup, so the size and the airflow direction matter more than the label on the box. For a Goodman cabinet in this family, skip the guesswork and match the model straight to genuine Goodman 20x22x5 air filters instead of trusting the rounded numbers stamped on the old frame.

TL;DR Quick Answers

- The whole job: about five minutes, no tools.

- Actual size: roughly 19.56 by 22 by 5.25 inches.

- The arrow points toward the blower.

- MERV 8, 11, or 13, with ratings for cleaner air if you want to compare.

- Plan on a change about every 90 days, and lean on a healthy replacement schedule for your home.

- Technician needed: no.

Top Takeaways

- A 5-inch Goodman media filter is one of the easiest parts of your system to handle yourself, especially once you see how your cooling system works.

- Match the real measured size, about 19.56 by 22 by 5.25 inches, not the rounded 20x22x5 on the label.

- Point the airflow arrow toward the air handler and away from the return.

- A higher MERV traps finer particles and can mean relief for allergy sufferers, though it adds a little airflow resistance.

- Date the frame, and treat each change as a whole-home maintenance habit rather than a chore you forget.

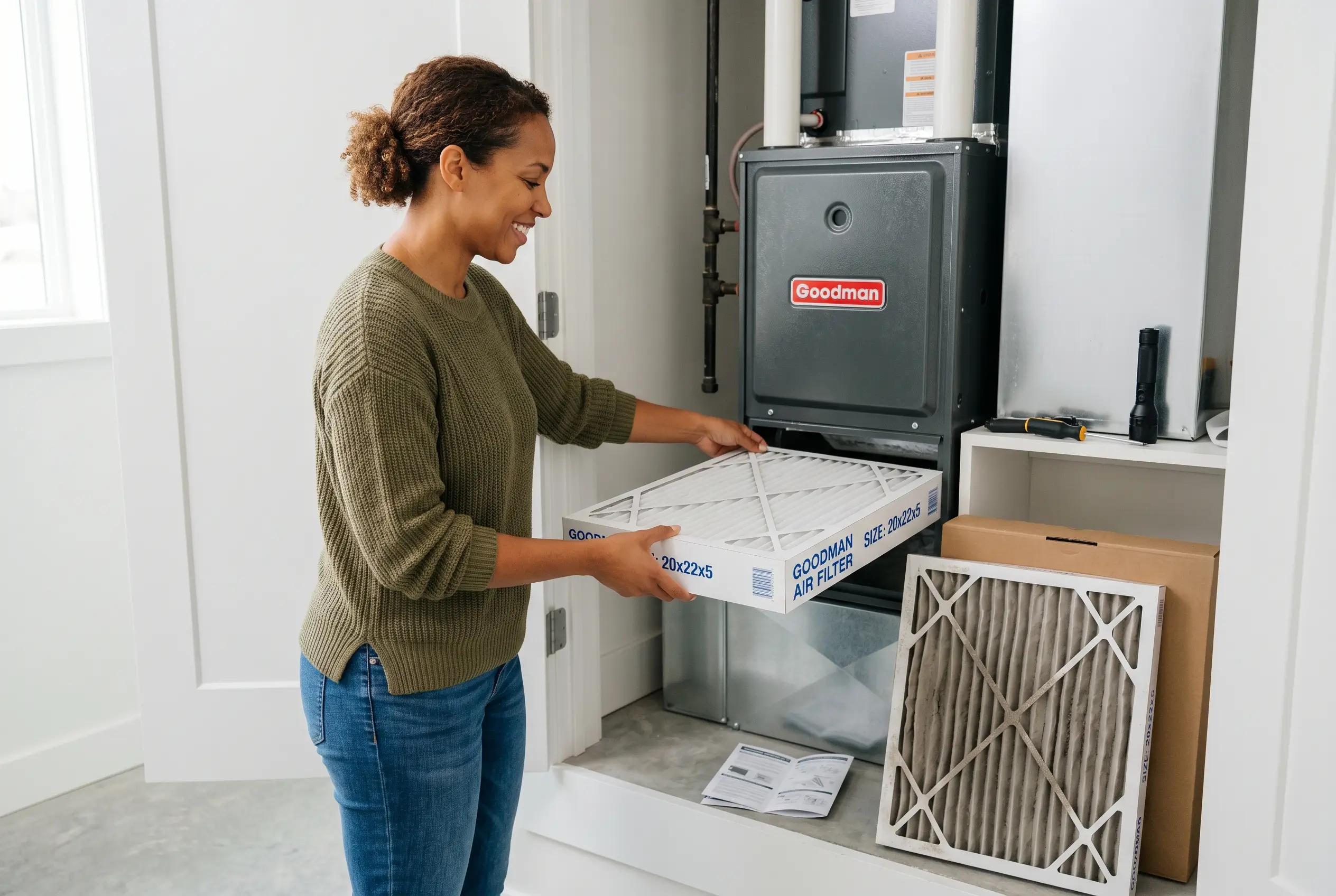

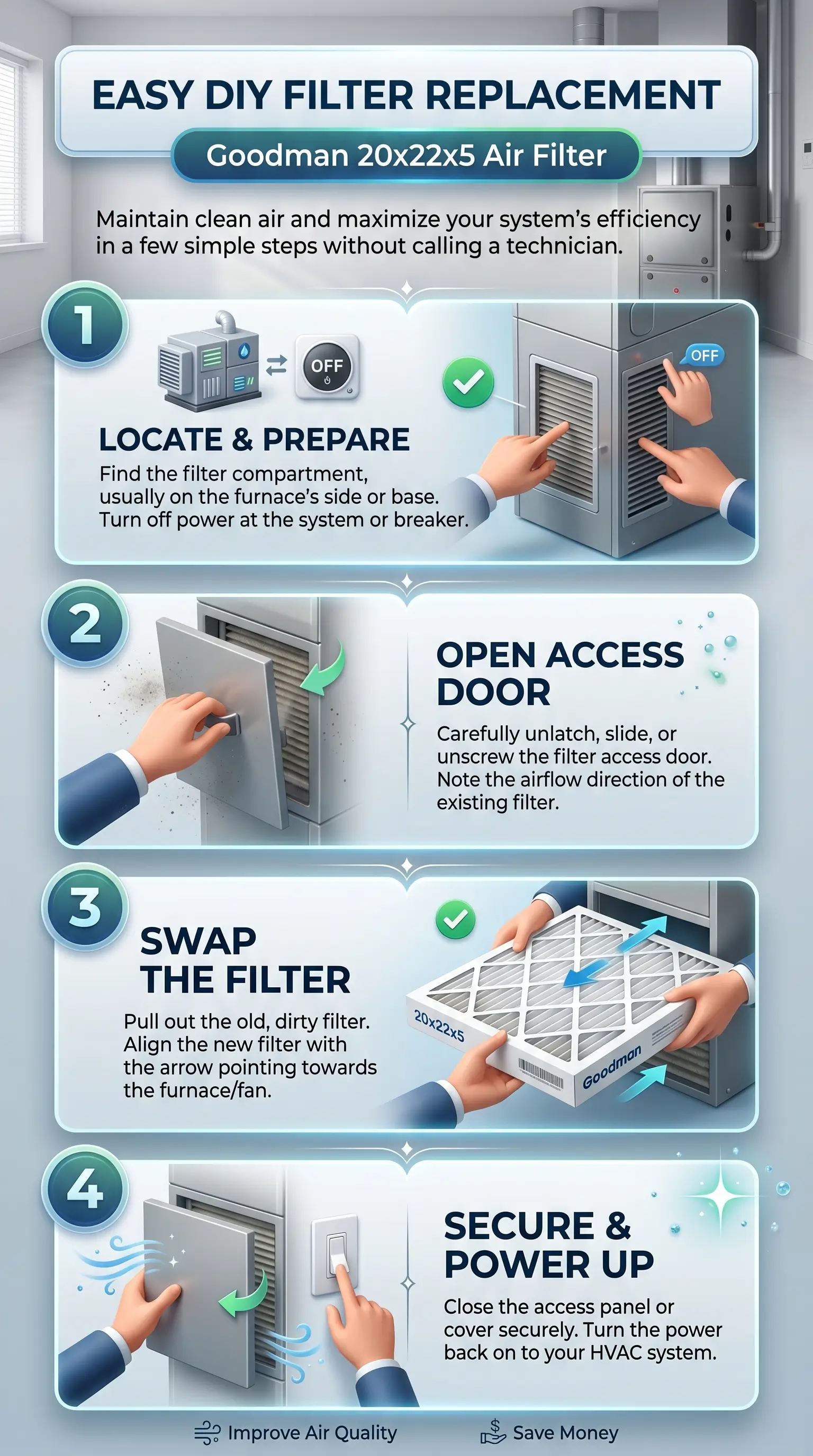

How to Change the Filter, Step by Step

Here is the entire job, top to bottom. Read it once, keep your replacement panel close, and you will not touch it again for about three months.

- Turn the system off at the thermostat. I shut mine down so the blower is not pulling air while the cabinet sits open.

- Find the media cabinet. On most Goodman setups it lives on the return side of the air handler, a slim metal door right where the big return duct meets the unit.

- Look at the airflow arrow before you touch anything. The old filter has one printed on the frame. Snap a photo so you can copy it later.

- Open the door and slide the old panel straight out. If it sticks, that is just packed dust at the edges, so ease it out slowly and keep the debris from dropping into the cabinet.

- Check the size. The label says 20x22x5, but the real panel runs about 19.56 by 22 by 5.25 inches. That small gap is exactly why a guessed filter rattles or lets air sneak around the edges, so match the right filter for your home.

- Slide the new panel in with the arrow aimed toward the blower and away from the return. On a Goodman cabinet, that arrow follows the same path the air takes into the handler.

- Shut the door, switch the system back on, and write the date on the frame so your next change is obvious at a glance.

Want to catch more of what floats through the house? The same cabinet takes a higher MERV. A MERV 8 is a standard filtration choice that grabs around 90 percent of common airborne particles. A MERV 11 pushes closer to 95 percent, and a MERV 13 lands near 98. The catch is that higher ratings slow airflow a touch, so I match the rating to the system and the people living in it, and I lean on longer-lasting filter media rather than always grabbing the highest number on the shelf.

“The mistake I see most often is people buying by the number printed on the old frame instead of the size the filter actually measures. On a 5-inch cabinet, that little gap is enough to let unfiltered air slip right past the edges, so I tell everyone to spend ten seconds confirming the real dimensions before they order.”

7 Trusted Resources I Keep Bookmarked for Cleaner Home Air

- How to Keep Your HVAC System Working Efficiently (ENERGY STAR): a plain checklist for keeping airflow strong and energy use down, including how often to check your filter.

- Indoor Air Quality: Why It Matters at Home (EPA): the agency's plain look at why the air inside can be dirtier than the air outside, and what drives it.

- Air Conditioner Maintenance Basics (U.S. Department of Energy): where filters live, how to maintain them, and why a clean one protects the whole system.

- The Inside Story: A Guide to Indoor Air Quality (CPSC): a homeowner-friendly safety guide to common indoor pollutants and the simple fixes for them.

- Air Cleaning and Choosing a Filter MERV (American Lung Association): clear guidance on MERV ratings and how filtration helps people living with allergies or asthma.

- Air Filters and Air Cleaners: An Expert Review (National Library of Medicine, NIH): a deeper read on filter types, including 2 to 5-inch media filters and whole-house setups.

- How Homes Use Energy (U.S. Energy Information Administration): the data behind how much of your bill heating and cooling really claim.

3 Numbers That Convinced Me to Never Skip a Filter Change

- Heating and cooling eat up nearly half the energy a home uses, according to ENERGY STAR. A clogged filter makes that system work harder for the same comfort.

- Americans spend about 90 percent of their time indoors, where some pollutants run 2 to 5 times higher than outside, reports the EPA. The panel you just changed is doing real work on that air.

- Air conditioners draw roughly 12 percent of U.S. household electricity, about $29 billion a year, per the U.S. Department of Energy. Keeping airflow clear is one of the cheapest ways to protect that spending.

My Honest Take on Skipping the Service Call

For a plain filter swap, calling a technician is overkill, and I will say that plainly. The panel goes in one way, the size fits on a sticky note, and the whole thing is faster than waiting for a callback. Where I do slow down is when the trouble stops being about the filter. If the cabinet door is bent or the system clogs again within days, that can point toward deciding when to upgrade. In those cases, weighing professional help beats forcing it on your own.

On MERV, I sit in the middle for most homes. A higher rating catches finer particles, which helps anyone fighting allergies, but it also adds resistance that some older blowers struggle with. I pick the rating my system can breathe through, then I change it on time. A right-sized filter swapped on schedule beats an aggressive one left in too long, and keeping your system efficient all year really comes down to that one habit.

Frequently Asked Questions

What is the actual size of a Goodman 20x22x5 filter?

The label reads 20x22x5, but the panel itself measures about 19.56 by 22 by 5.25 inches. Order to the real size so it seats tight, with no gaps for air to slip around.

Which way does the airflow arrow face?

Toward the blower and the air handler, the same direction air leaves the return. If you are unsure, copy the arrow on the filter you pulled.

MERV 8, 11, or 13, which should I pick?

MERV 8 catches roughly 90 percent of common particles, MERV 11 around 95 percent for stronger dust protection, and MERV 13 close to 98. Allergy households usually reach for 11 or 13. Just make sure your system can handle the extra resistance.

How often should I replace it?

A 5-inch media filter usually runs about 90 days. Swap it sooner if you have pets, allergies, or a dusty house, and eyeball it monthly during heavy heating and cooling stretches.

Can I really do this without a technician?

Yes. Changing the filter is routine upkeep, not a repair. You need a matching panel and a couple of minutes, and you get fresher air at home for the trouble.

Is a 5-inch media filter the same as a 1-inch filter?

No. A deeper pleated panel holds more and lasts longer between changes, which is why the cabinet is built for the thick filter instead of a thin one-inch sheet.

Keep a Correct-Fit Replacement Ready for the Next Swap

Measure your cabinet once, then make keeping spare filters on hand a standing habit so the next change is a five-minute job instead of a store run. When the date on the frame rolls around, everything you need is already on the shelf and the swap is yours to make.
